Gateway API Controller Metrics¶

This guide explains how to access and monitor metrics from the AWS Gateway API Controller using Prometheus and Grafana.

Prerequisites¶

A running Kubernetes cluster with the AWS Gateway API Controller installed
kubectl CLI tool installed and configured
helm CLI tool installed

Getting Access to Available Metrics¶

The controller makes metrics available via HTTP endpoint in Prometheus metric format. One possible solution for collecting and visualizing these metrics is to set up Prometheus and Grafana using kube-prometheus-stack which is described in the next section.

Step 1: Verify Controller is Running¶

First, verify that the Gateway API Controller is running:

kubectl get pods -n aws-application-networking-system

Step 2: Port Forward to Metrics Endpoint¶

Port forward to the controller's metrics endpoint:

kubectl port-forward -n aws-application-networking-system \
  deployment/gateway-api-controller 8080:8080

Step 3: Access Metrics¶

Access the metrics endpoint:

curl http://localhost:8080/metrics

This will display all available metrics exposed by the controller.

Setting Up Prometheus and Grafana¶

For a complete monitoring solution, you can set up Prometheus and Grafana to collect and visualize metrics.

Step 1: Add Helm Repository¶

Add the Prometheus community Helm repository:

helm repo add prometheus-community https://prometheus-community.github.io/helm-charts
helm repo update

Step 2: Create Prometheus Values File¶

Create a prometheus-values.yaml file with the following sample configuration:

prometheus:
  prometheusSpec:
    serviceMonitorNamespaceSelector: {}
    podMonitorNamespaceSelector: {}
    serviceMonitorSelectorNilUsesHelmValues: false
    retention: 7d

grafana:
  adminPassword: admin

Step 3: Install Prometheus with Custom Values¶

Install the Prometheus stack with your custom values:

helm install prometheus prometheus-community/kube-prometheus-stack \
  --namespace monitoring \
  --create-namespace \
  --values prometheus-values.yaml

Step 4: Verify All Pods are Running¶

Verify that all monitoring pods are running:

kubectl get pods -n monitoring

Step 5: Deploy ServiceMonitor¶

Deploy the ServiceMonitor to configure Prometheus to scrape metrics from the controller:

kubectl apply -f config/prometheus/monitor.yaml

Step 6: Verify ServiceMonitor Deployment¶

Verify that the ServiceMonitor has been created:

kubectl get servicemonitor -n aws-application-networking-system

Step 7: Access Prometheus¶

Port forward to the Prometheus service:

kubectl port-forward -n monitoring svc/prometheus-kube-prometheus-prometheus 9090:9090

Open http://localhost:9090/service-discovery in your browser and verify that the service monitor is discovered.

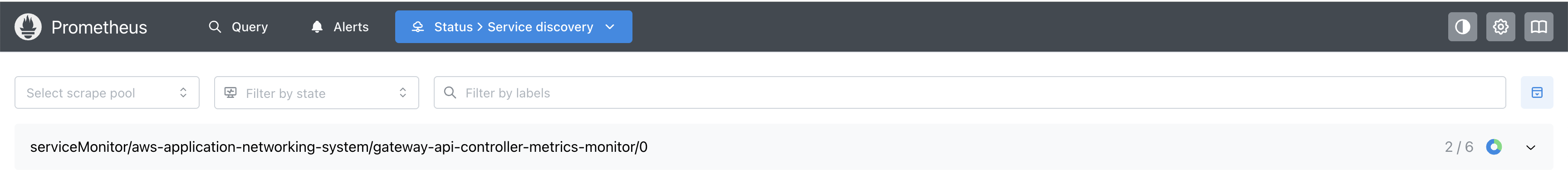

Prometheus Service Discovery

Step 8: Test Queries in Prometheus¶

Open http://localhost:9090/query in your browser to execute queries.

Example query:

Total number of successful HTTPRoute reconciliations:

controller_runtime_reconcile_total{controller="httproute",result="success"}

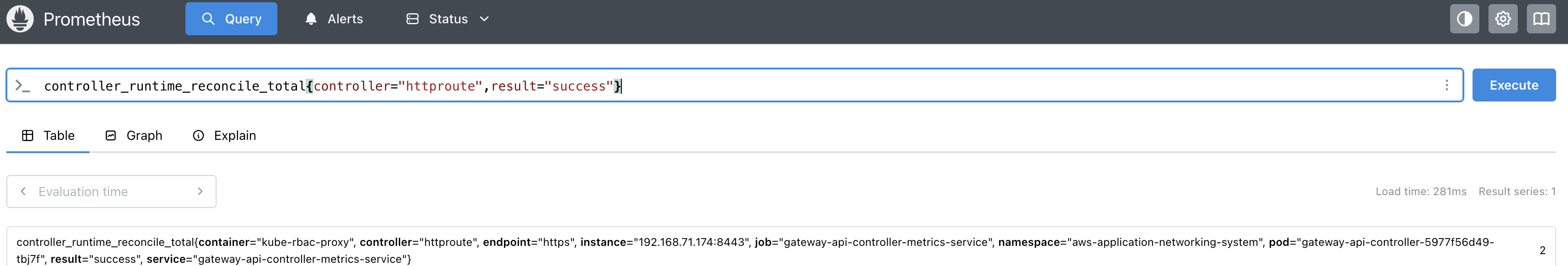

Prometheus Query Interface

Step 9: Access Grafana¶

Port forward to the Grafana service:

kubectl port-forward -n monitoring svc/prometheus-grafana 3000:80

Open http://localhost:3000/login in your browser and enter admin/admin as credentials.

Step 10: Create Dashboards in Grafana¶

You can create custom dashboards in Grafana using the exposed metrics:

Go to Dashboards
Click New dashboard → Add visualization
Select Prometheus as the data source
Write your query

Example queries for Grafana dashboards:

Total number of successful HTTPRoute reconciliations:

controller_runtime_reconcile_total{controller="httproute",result="success"}

P99 latency for HTTPRoute reconciliations:

histogram_quantile(0.99, controller_runtime_reconcile_time_seconds_bucket{controller="httproute"})

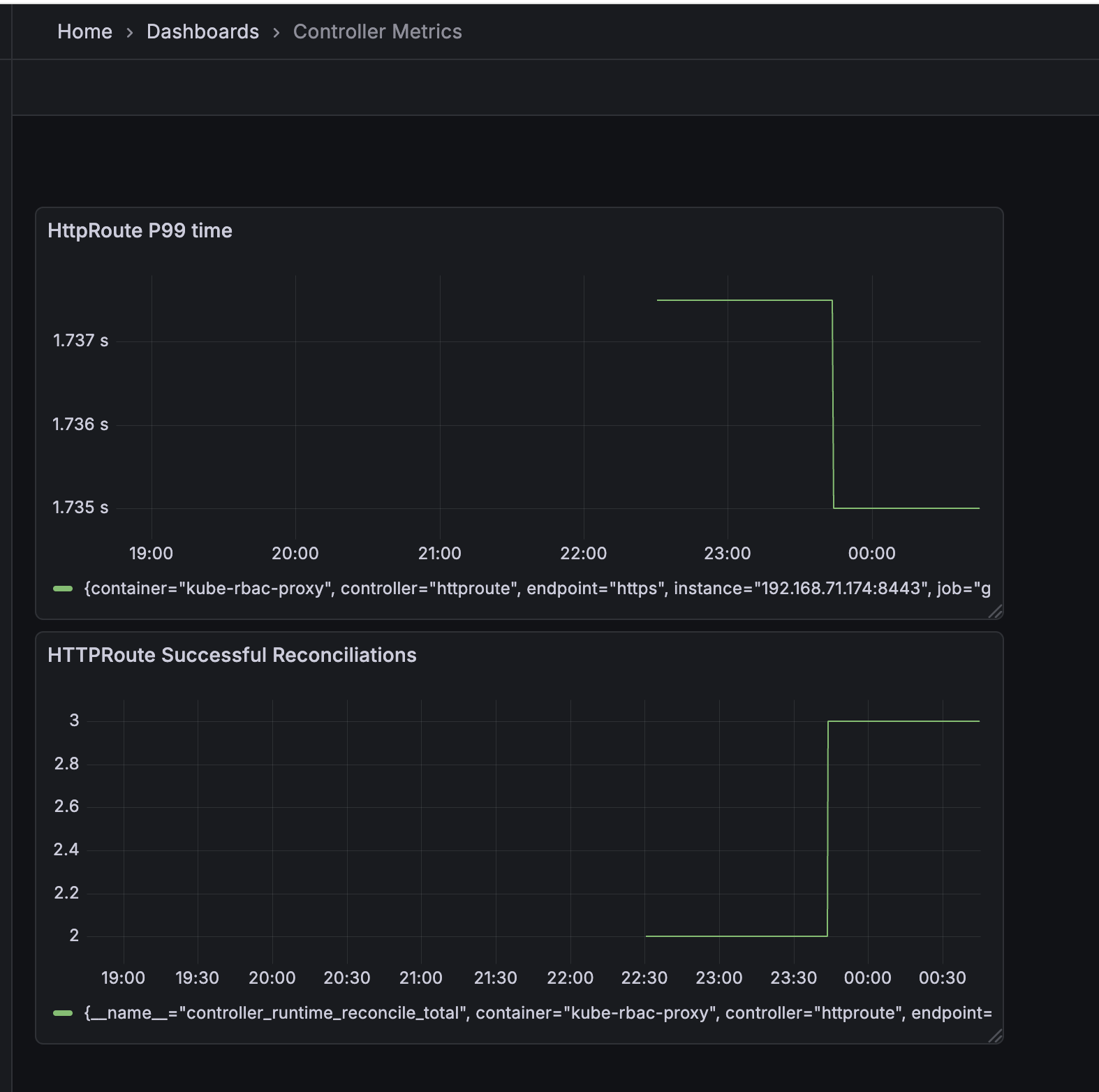

Grafana Dashboard

Available Metrics Reference¶

The controller exposes a comprehensive set of metrics that can be used for monitoring and alerting. Below is a reference of commonly used metrics organized by category.

AWS SDK Metrics¶

These metrics track interactions with AWS services:

aws_api_call_duration_seconds (histogram): Perceived latency from when your code makes an SDK call, includes retries
aws_api_call_retries (histogram): Number of times the SDK retried requests to AWS services for SDK API calls
aws_api_calls_total (counter): Total number of SDK API calls from the customer's code to AWS services
aws_api_request_duration_seconds (histogram): Latency of an individual HTTP request to the service endpoint
aws_api_requests_total (counter): Total number of HTTP requests that the SDK made

Controller Runtime Metrics¶

These metrics track the controller's reconciliation behavior:

controller_runtime_active_workers (gauge): Number of currently used workers per controller
controller_runtime_max_concurrent_reconciles (gauge): Maximum number of concurrent reconciles per controller
controller_runtime_reconcile_errors_total (counter): Total number of reconciliation errors per controller
controller_runtime_reconcile_panics_total (counter): Total number of reconciliation panics per controller
controller_runtime_reconcile_time_seconds (histogram): Length of time per reconciliation per controller
controller_runtime_reconcile_total (counter): Total number of reconciliations per controller
controller_runtime_terminal_reconcile_errors_total (counter): Total number of terminal reconciliation errors per controller
controller_runtime_webhook_panics_total (counter): Total number of webhook panics

Workqueue Metrics¶

These metrics track the internal workqueue behavior:

workqueue_adds_total (counter): Total number of adds handled by workqueue
workqueue_depth (gauge): Current depth of workqueue
workqueue_longest_running_processor_seconds (gauge): How many seconds has the longest running processor for workqueue been running
workqueue_queue_duration_seconds (histogram): How long in seconds an item stays in workqueue before being requested
workqueue_retries_total (counter): Total number of retries handled by workqueue
workqueue_unfinished_work_seconds (gauge): How many seconds of work has been done that is in progress and hasn't been observed by work_duration
workqueue_work_duration_seconds (histogram): How long in seconds processing an item from workqueue takes
